Olide-120B Automatic Door Opener For Frameless Glass Swing Door

Olide-120B automatic glass swing door opener, the top-mounted swing-open automatic door unit adopts brushless DC motor, long-life design and microcomputer intelligent control. It can be used as the execution terminal of various access control devices, and can be connected with motion/body sensor, to be an induction door.

One set electric door opener includes: Opener, 2 remotes, 2 pcs push buttons,1 hand programmer,1 plug, sticker, push arm for outswing door,push arm glass clamp,pull arm for inswing glass door

Olide-120B Glass Door Automatic Door Opener Manual

Olide-120B Automatic Door Opener For Glass Swing Door Features

1. Reinforced high strength aluminum alloy and imported original parts used.

2. Imported motor from Germany with fast speed and service life of more than 1 million times,it can work stable and with smooth operation

3. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage.

4. Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.

5. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.

6. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).

7. The swing door opener model Olide-120b can bear withstand the door weight of 120kgs(264.55lbs). Widely used for glass swing door.

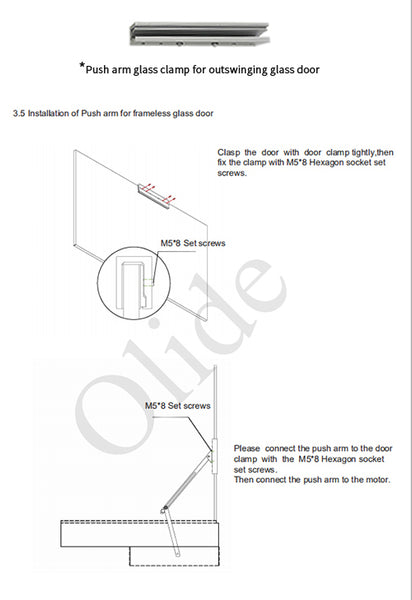

Olide-120B Automatic Glass Swing Door Opener Push Arm Installation

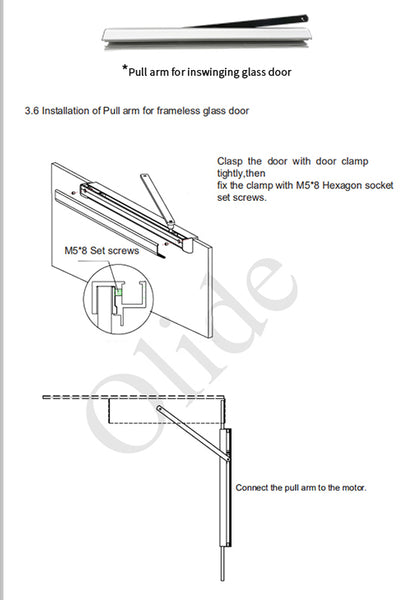

Pull Arm Installation

Technical Specifications

Wiring Diagram
