Olide-120B Double Automatic Swing Door Opener Residential/Commercial Use

$1,299.98

Shipping calculated at checkout.

Olide-120B Double Automatic Swing Door Opener Residential/Commercial Use

Olide-120b double automatic swing door opener suitable for double door system, which can be opened and closed at the same time. The aluminum alloy cover of the door opener is customized according to the door width, which is generous and beautiful.

The max. door weight of double automatic swing door opener can be 240kg, can be widely use in commercial and residential applications.

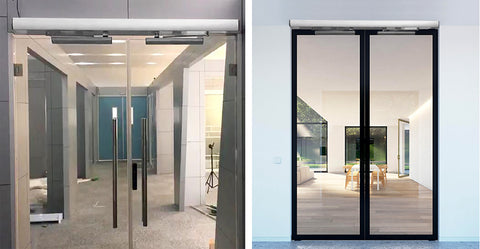

olide-120B double automatic swing door opener installation example

Olide-120B Manual

Olide-120B Automatic Swing Door Opener Features

Reinforced high strength aluminum alloy and imported original parts used;
Auto-reverse function;

Accelerate evenly when opening the door and decelerate evenly when closing the door. Buffer function makes the door run fast and steady;
Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine;
Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage;
Can be remotely control, control distance is within 10m.

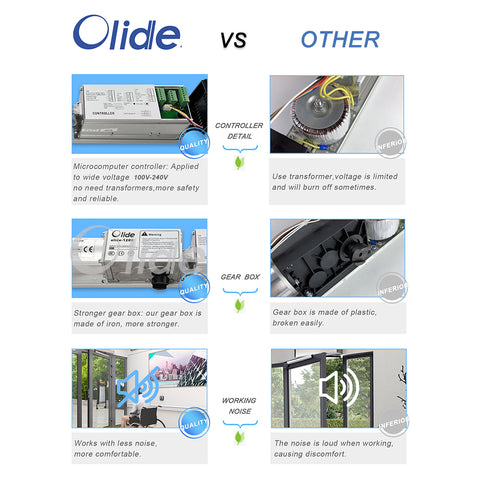

olide-120B automatic swing door advantages

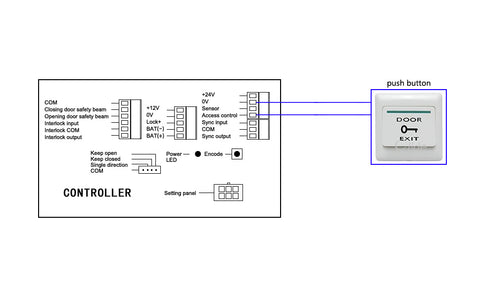

Wiring Diagram

olide-120B wiring diagram with push button

We Also Recommend

automatic handicap door opener with wireless handicapped push switch

DSW120 ADA Automatic Swing Door Opener with Wireless&Wired Handicapped Switches

Olide-120B/DSW120 Automatic Swing Door Opener Remote Control

Electric Strike Door Lock For automatic swing door

Olide Electric Strike For Automatic Swing Door For Maximum 250kg Door CE Certification

Olide DSW120 Push Button Automatic Swing Door Opener With Hand Programmer

hand programmer for automatic swing door opener

Hand Programmer For Olide-120B, DSW120 Automatic Swing Door Opener

QUESTIONS & ANSWERS

Ask a Question

this product sounds like what i am looking for buy! i need the wireless push button boxes that are on the wall on both sides of the doors. and if i am not mistaken this double door opener is just plugged right into the wall socket right?

Hi, Yes, It has a power cord that is plugged directly into the socket, but the other end goes into the power end of the door opener.
Also this package does not including wireless push button, you can buy the wireless switch separately:
wireless handicap push button
Or look at these double door packages, the difference between them and the one you are looking at is the cover, this cover is a double door in one piece, but the motors are still 2 separate motors, the other double door packages are just 2 separate sets of machines with the same functionality.
https://www.olidesmart.com/collections/olide-120b/products/olide-dual-automatic-handicap-door-opener
https://www.olidesmart.com/collections/olide-120b/products/dual-electric-swing-door-operator-with-2pcs-wired-push-button
https://www.olidesmart.com/collections/olide-120b/products/olide-smart-double-swing-door-operator-with-wave-to-open-switches
https://www.olidesmart.com/collections/olide-120b/products/wifi-smart-double-electric-swing-door-operator-with-slim-handicap-push-button
For more question, feel free to contact us.
OLIDE-120B DOUBLE AUTOMATIC SWING DOOR OPENER What are the dimensions of the motor unit?

Hi,
You can see the size in the picture here: https://cdn.shopify.com/s/files/1/0018/5119/5427/files/olide-120B_handicap_door_opener_size.jpg

The cover is customized according to your door width.
how does this attach to the frameless glass door?

Hi,

There is glass clamp equipped for frameless glass door.
