Olidesmart Swing Door Electric Closer with Motion Top Scan Sensor and Electric Strike
Olidesmart Swing Door Electric Closer with Motion Top Scan Sensor and Electric Strike
The electric swing door closer is equipped with a motion top scan and electric lock, which can accurately and reliably detect objects and provide signals to the automatic door, thereby preventing the occurrence of accidents of people and objects on the automatic door, and installing an electric lock will make your building safer.
Electric Swing Door Closer Benifits
- There is a safety sensor, which can effectively prevent people from being trapped, and can also be set to drive the sensor to automatically open the door from the room. Safe, reliable and easy to maintain;
- There are no special requirements for the door body, as long as there are installation conditions, an ordinary swing door can be turned into an automatic door, which is simple to install and easy to use;
Olidesmart Automatic Swing Door Features

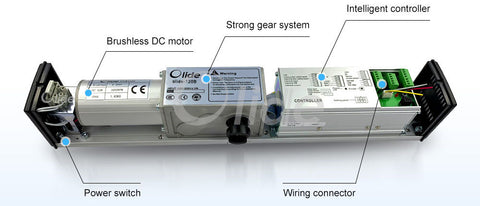

- Built-in microprocessor control unit with functions of self-diagnosis and continuous inspection of all states of the door;
- Universal voltage can widely used --It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine;

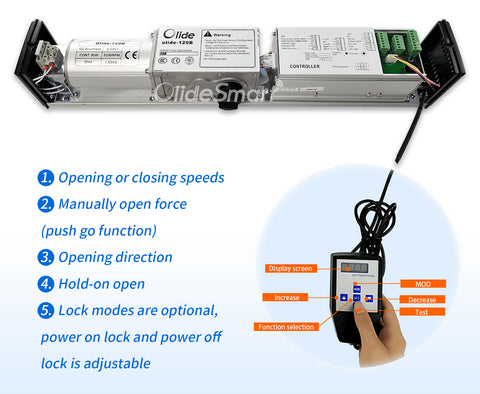

- Use the debugging handle to adjust parameters simply and quickly;

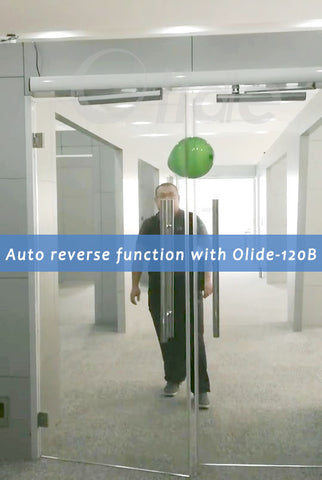

- Auto reverse function, the door will re-open if it notices an object in the closing path;
- Manually push force can be adjusted on closing force by hand programmer;

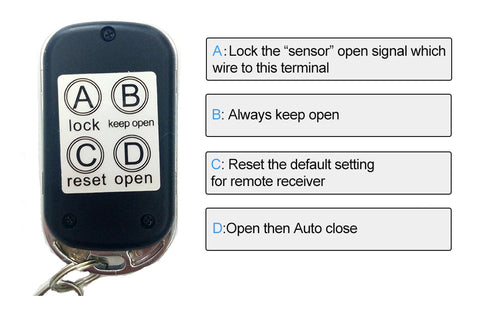

- Multiple ways to open the door, push button, remote control(within 10m), sensor, etc;

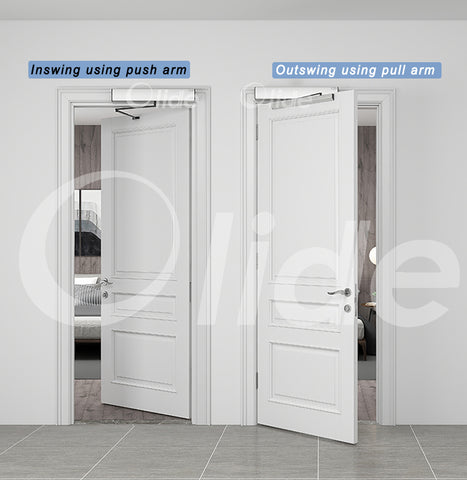

- Both push and pull arm available;
- Multi-function controller design, automatic access control device can be connected;
Automatic Swing Door Applications
Mainly used to protect emergency exits, goods shipping and receiving doors, security doors, internal access doors, etc. It has been widely used in airports with emergency exits, command centers, hotels, large shopping malls, hospitals, supermarkets, public transportation systems, banks , Securities, commercial office buildings, factories, living apartments, municipal buildings and government agencies.
Product Technical Specifications
Electric Swing Door
| Model number: | Olide-120B | Voltage: | 110-240 VAC +-10% |
| Power consumption: | 50W | Opening time: | 3-7sec. @90degree |
| Hold-open time: | 1-30sec. Adjustable | Motor: | DC 24V brushless motor |
| Max. door frame depth: | 450mm/17.7" | Door width: | Min. 660mm/26"; Max. 1200mm/47.2" |
|
Environment Temp.: |
-20°C-50°C; -4F-122F | Protection class: | IP12D |
| Operation noise: | Less than 55db | Installation method: | Surface-Mounted |
| Product dimensions: | 21.45 x 3.35 x 3.74 inches | Item weight: | 17.6 pounds |
Motion Top Scan Sensor
| Operation voltage | AC/DC 12 - 36 V | Detection area diameter: | About 75mm light spot |
| Ambient temperature: | -20°C - +60°C | Type of ray: | Infrared ray |
| Current consumption: | <100mA | Detection response time: | ≤100ms |
| Operation mode: | Motion or standstill mode | Function Indicator: | LED |
| IP: | Ip52 | Housing material: | AL/ABS |
| Sensor dimension: | 620×31×20mm |
| Scan area setting: | Mechanical adjustment of wheels 500 - 2800mm |
| Distinguish black/white： | Max 20% White: scan area is larger Black: scan area is smaller |
| Signal output: |
Relay, switch point Highest alternating current 0.5 ADC/ AC |
| Electromagnetic compatibility: | Anti-interference abide by EN61000-6-1, EN61000-6-2 Emission interference abide by EN61000-6-3, EN61000-6-4 |

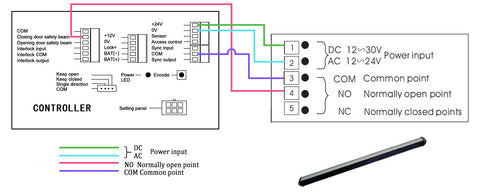

Wiring Diagram
After-Sales Technical Support
933 Oakes Ave.Superior, WI 54880
Tel: 218-461-9189
