Olidesmart Wifi Switch Automatic Sliding Door Opener Alexa Voice Control

  • $359.26
Shipping calculated at checkout.

Only 459 left!

More Video

Olidesmart Wifi Switch Automatic Sliding Door Opener

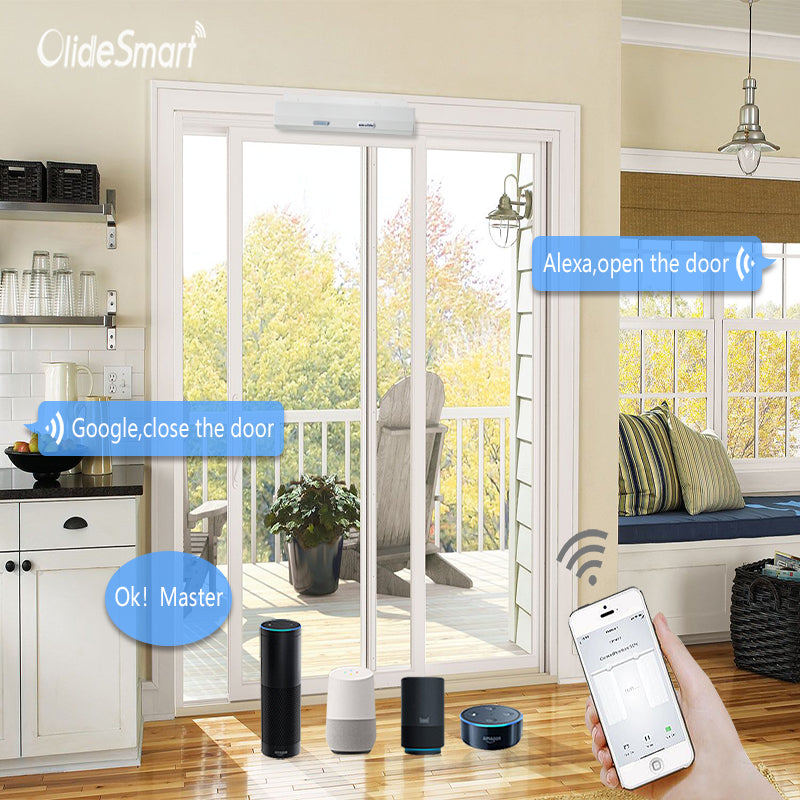

Alexa voice control automatic sliding door opener

One complete set include items on above picture,there are 1pc slider, 1pc Wifi access switch, 1set wireless push switch,motor,remote control,0.5mx2pcs rack,mounting accessories.

Residential Sliding Door Opener Manual

OS1001 WiFi Switch Manual

Smart Phone Control Door Opener Advantages

  • Through the network, you will be able to control the opening and closing of the door by Alexa, google Echo voice controller and mobile phone. (Imagine, if you are cooking or reading in the room, or sleeping late, and then you heard a knock on the door, no time or don't want to get up? No problem, just turn on the phone and open the door with one click.)
  • Good option for elder/disabled.For folks who are elderly or disabled.Door opener can work with remote controller and intelligent speakers,like Alexa, Echo
smart phone control sliding door opener
  • Easy for installing,without change existing door structure.
  • Computer size,nice appearance and modern design.
  • System can apply with sensor,remote control,push button,pet switch,photocell,card reader,lock and so on.
  • Window and door mode can be switched Arbitrarily.
  • 433.92hz module ,can be suit with smart-home.

Residential Sliding Door Opener Technical Specifications

Residential sliding door opener

Power supply: 100-240V Max weight: 80kg
Max width: 5 meters Standard track: 1 meter
Color: White/Black Length of track: 0.5 meter/pc



WiFi Switch
Working Voltage: AC/DC 12~24V
Quiescent Current: 85mA (12V)
Action Current: 115mA (12V)
Press Method: 1S pressing to open door, 5S pressing to enter matching status.
 Security Mechanism: Allow the first register as user manager
Output: Relay Signal

Mode And Parameter Adjustment Introduction

Five mode available

  • Automatic Mode: The door will open when a sensor is triggered and close after the preset dwell time has elapse(all signal working normal)
  • Hold-open Mode: The door will open and remain open until another mode is selected.
  • Lock Mode: Door will close and remain closed until another mode is selected.
  • Pet Mode: For use with pet sensors and when a pet opening width has been set. Will open the door to the pet opening width when any pet sensor is triggered and close after the preset dwell time has elapsed.
  • Manual Mode: The door can be manually operated, the system will not drive the door.

Parameter Adjustment

Speed: Opening 10-45cm/s, closing 10-25cm/s (adjustable)

Opening time: 0-20s (adjustable)

Learning Button: Learning button of remote or wireless push button, added and delete remote process.

Learning Led: Remote learning indicator

residential sliding door parameter adjustment introduction

Installation

automatic sliding door opener for home use installation

Wiring Diagram With Wifi Switch

 wiring diagram for residential sliding door and WiFi  switch
