SD300 Automatic Window Opener Motor, DC24V Single Motorized Window Actuator
SD300 Automatic Window Opener Running Video

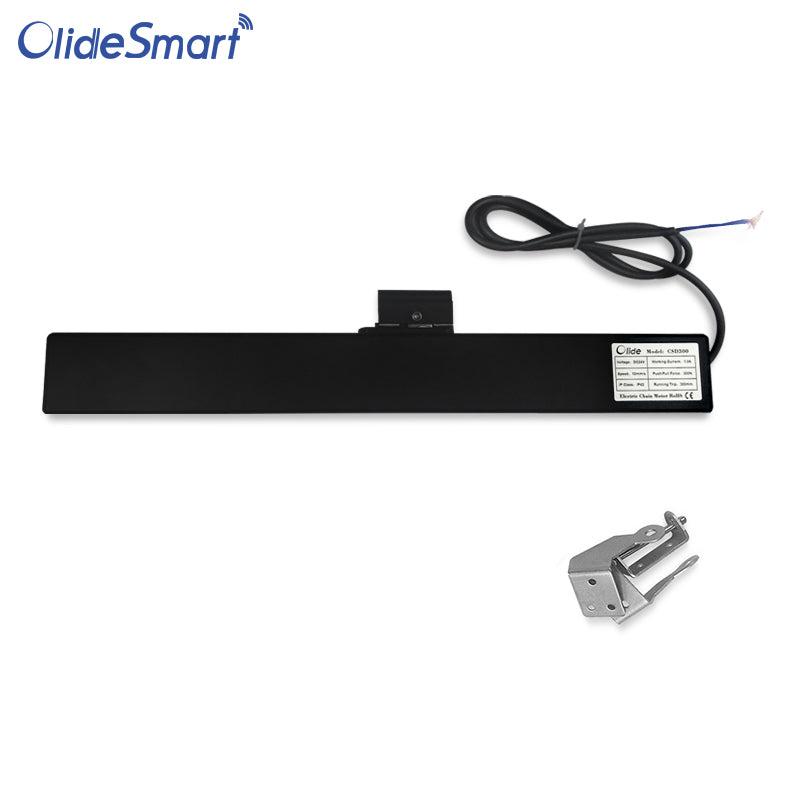

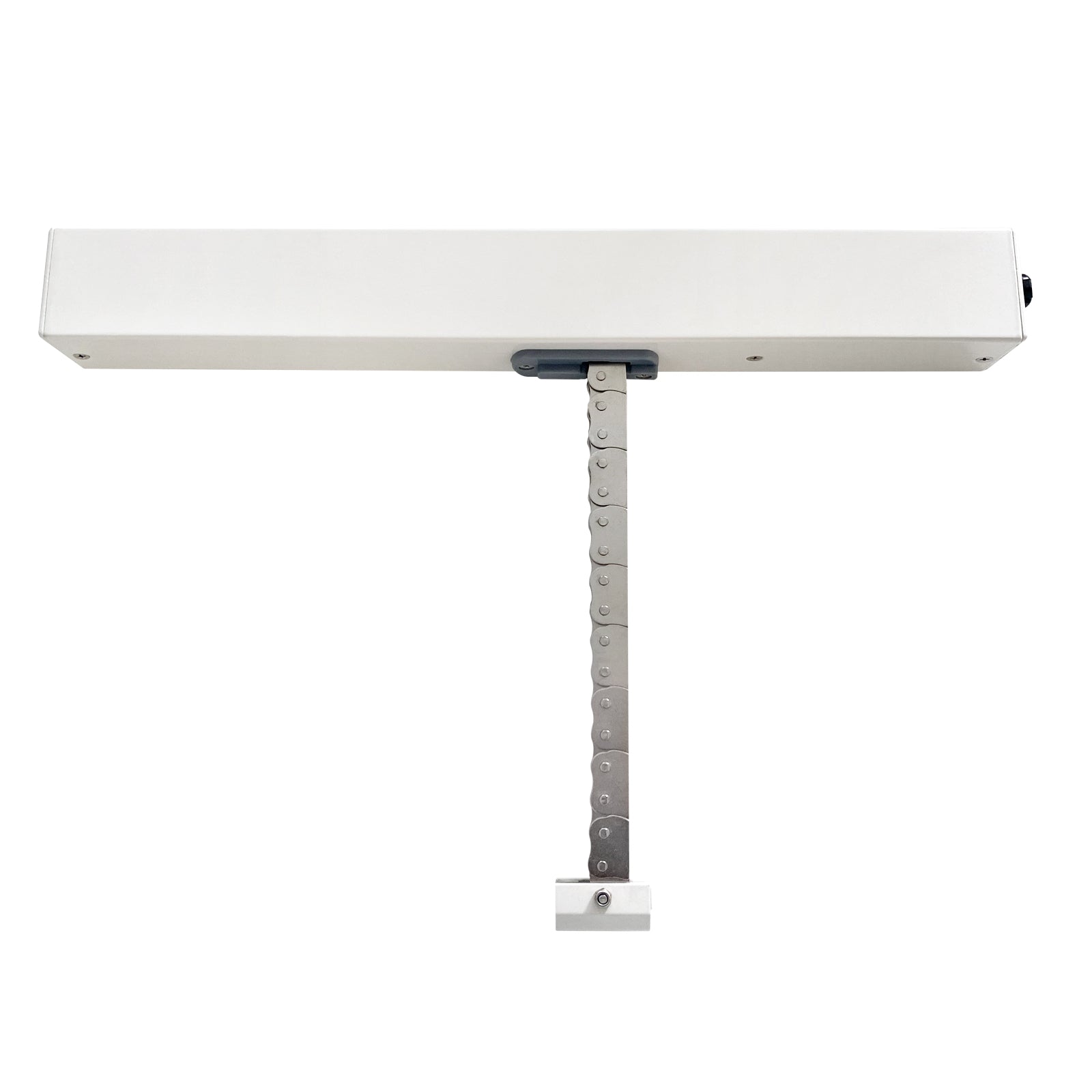

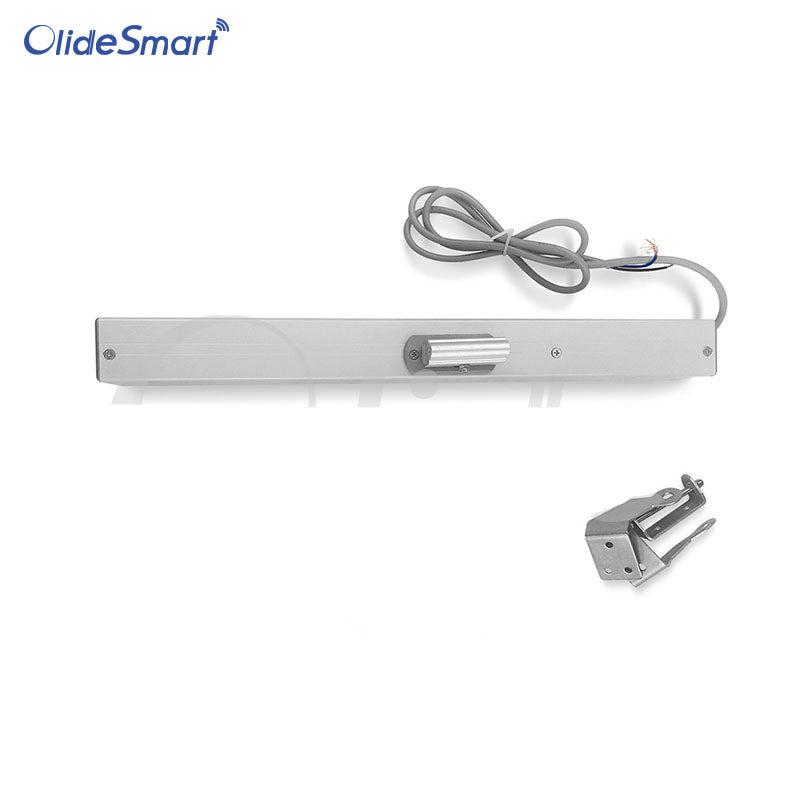

SD300 Automatic Window Opener Motor
- Smooth and Quiet Operation: Designed to open and close with minimal noise, ensuring a peaceful environment.
- Tightly Interlocking Chain: Provides reliable and secure movement, enhancing durability and performance.
- Automated Functionality: Enables convenient remote control and integration with smart home systems;
- Safety Features: Equipped with automatic stop functions to prevent over-extension or obstruction;
- Rain Sensor Compatibility: Option to install a rain sensor for automatic closing during adverse weather conditions;
- Energy Efficient: Utilizes low power consumption technology, making it cost-effective and environmentally friendly;
- Rotating bracket is easy to install, installed parallel to the window, takes little space, suitable for various window types;
- The color are silver and black (large quantity can be customized), and the window stroke is 300-500mm optional.
Different Models Motor Dimension
Technical Parameters
| Model | SD300 | SD400 | SD500 |
| Operating Power: | 24V DC | 24V DC | 24V DC |
| Degree of Protection: | 42 IP | 42 IP | 42 IP |
| Operation Ambient Temp.: | -10°C - +70°C | -10°C - +70°C | -10°C - +70°C |
| Push/Pull Force: | 300N | 300N | 300N |
| Max Load Bearing: | 40kg | 50kg | 60kg |
| Travel Distance: | 300mm | 400mm | 500mm |
| Speed: | 8mm/s | 8mm/s | 7mm/s |
Wiring Diagram
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
Can I link five windows to a single controller? Application is a greenhouse, awning style window. What is the country of origin?
Hi, one controller only can conenct to one window opener, otherwise, it will burn out. For multiple window group control, we recommend using app control window opener, such as OS1003, the wall switch is wireless, it can also be paired with multiple window openers, and control them together; you can also set group control in the App.
https://www.olidesmart.com/collections/os1003dc/products/tuya-wifi-automatic-window-opener-with-wall-switch-and-remote-control
We have warehouse in US.
