Olidesmart Infrared Detector For Automatic Door Opener, Wireless Pet Sensor

  • $85.60
Shipping calculated at checkout.

Only 296 left!

Wireless Pet Sensor For Automatic Door Opener

Wireless Pet Sensor Switch For Automatic Door Opener

Product application

It can be used as supporting sensor for autodoors, with high sensing sensitivity, fast and accurate response, fully adapting to the people and object access and exit requirements of autdoors.

General characteristics

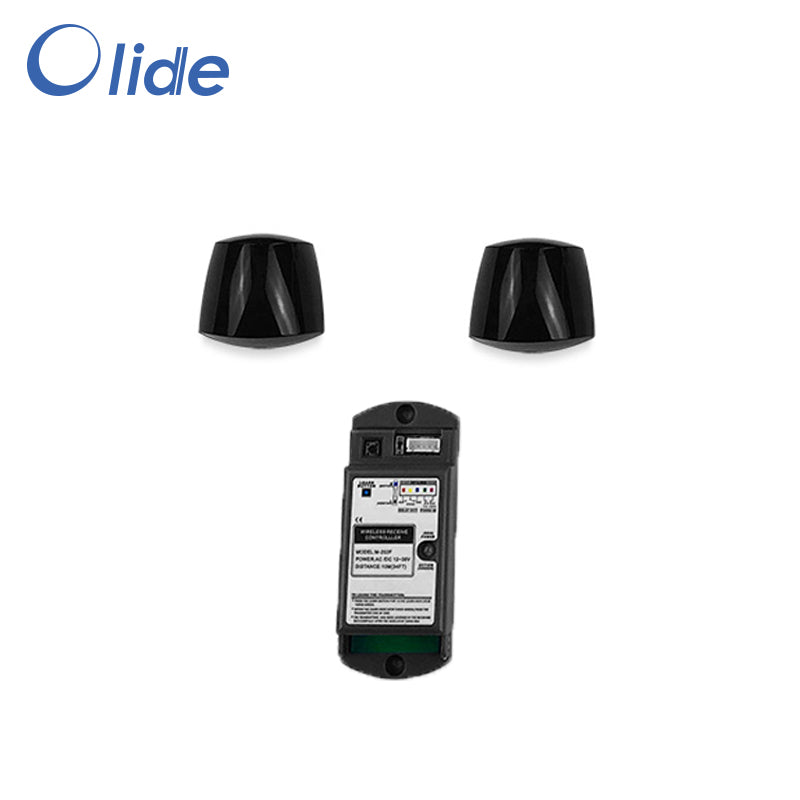

  • It adopts the pair use of wireless transmitter and wireless receiver, without needing wiring, so it is flexible and convenient to install.
  • Integrated face cover design, artistic and dustproof appearance, easy to fix and easy to connect.
  • It is used in supermarket, stores and control occasions of small autodoors with frequent person access, and also in human body presence detection in small space, and used in action and presence detect function.
  • One channel for transmitting, one channel for receiving, intelligent self-adaptive infrared sensors
  • Self-adjustment between sensing area and angle.
  • It can make a real-time compensation for time drift automatically, and can make self-correction for various external changes (such as vibration, deformation, gradual movement, darkness, sunlight, etc.), and ensure the long and reliable work of the detector.

Technical Specifications

Dynamic Current: 13mA Sensing Method: Infrared scanning
Scanning Area: 100x80mm Battery Type: 6F22 9V

Wireless Transmitting

Frequency:

315MHz

Wireless Transmitting

Distance:

About 15M
Standby Current: =<0.08mA

Working Environment

Temperature:

-20 - +60°C
Mounting Height: =<2600mm Fixing Method: Fixed by surface mounting screws



Receiver
Power Supply: AC/DC 12-36V Static Power Consumption: 15mA
Dynamic Current: 80mA(when under DC12V) Capacity of Main Contact: 20A 14VDC
Contact Closing Hold Time: 2s Wireless Receiving Distance: About 15m



Wiring With Residential Sliding Door Opener

wiring diagram for residential sliding door and pet sensor
