Human Figure Recognition Sensor, Anti-Pinch Sensor for Automatic Doors, Swing Door Sensor

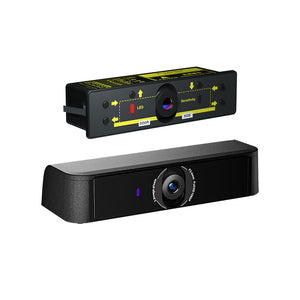

Human Figure Recognition Sensor
There are 3 models for the sensor, they differ in the way they are installed.
OS802 - Surface-Mounted Sensor
- Designed for easy surface mounting.
- Ideal for quick installations on door frames.
- Sleek and low-profile appearance.

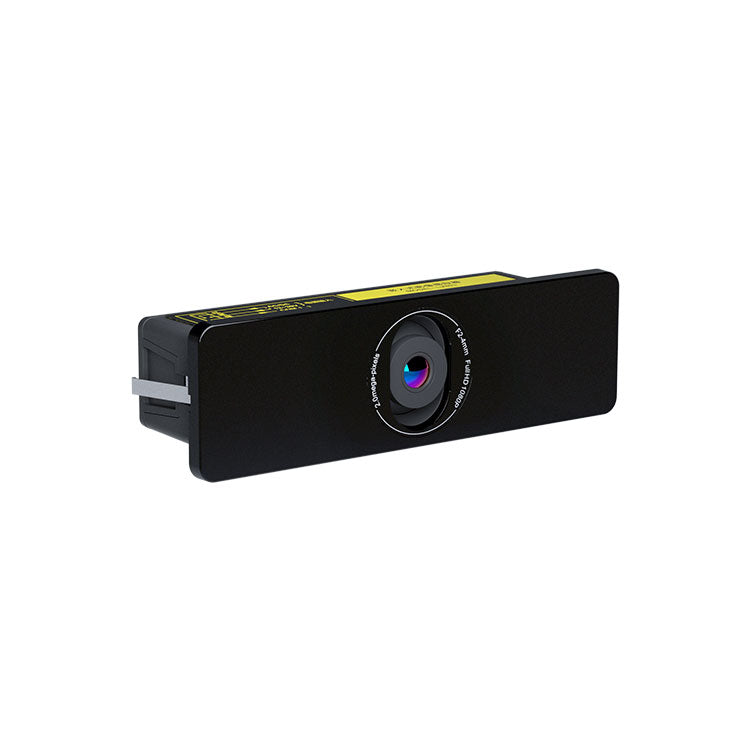

OS803 - Embedded Sensor
- Intended for hidden installations.
- Embedded within doorframes for a clean look.
- Ultra-slim Design, OS803 embedded human recognition sensor, with a compact and refined appearance,can be installed on narrow doors, and is suitable for various scenarios.
OS805 - Moving Type Sensor
- Mounted directly on the door.
- Moves with the door for consistent detection.
- Ensures accurate sensing regardless of door position.
Human Figure Recognition Sensor Features
- Al Human Figure Smart Detection
- ULRA-HIGH DOOR DECTION
Using video stream image acquisition, the installation height can reach up to 5 m;
- Night Vision View
Built-in infrared fill light LEDs, fearless of the dark;
- Viewing Angle
Utilizes a single-axis eagle-eye design, with the camera angle adjustable by 20 degrees, covering the entire motion detection range;
- Dual Relay Output
Start and anti-pinch/anti-collision signals are independently output, and the sensing ranges for start and anti pinch can be set separately;
- Humanized Debugging
One- touch sensitivity. Adjust the sensing area using the range adjustment buton, simple and convenient;
Technical Parameters
| Model | OS802 | OS803 | OS805 |
| Detection function | Human figure activated, safety | ||
| Power supply | AC/DC12-30V | ||
| Camera pixel | HD 1080P | ||
| Standby current | 160mA | 95mA | |
| Action current | 200mA | 130mA | |
| Response speed | 100ms | ||
| Working Temp. | -20°C - 60° | ||
| View angle adjust | +-20° | ||
| Working RH. | 10-90%RH | ||
| LED indicator | standby in Bule, sensing in Red |
standby in Bule, sensing in Red, safety in Red light flashes |
|
| Installation height Max | 5m | ||
| Dimension | 157*53*34 mm | 128*38*40mm | 157*53*34mm |
How to Programming OS802 Sensor
