Automatic Door Push Switch for Disabled Toilet, Washroom Switch for Handicap Door Openers
Automatic Door Push Switch for Disabled Toilet/Washroom
It is special used for management of autodoors of special toilet for disabled or building floor toilet as the special action switch for autodoors, installed at the entrance of the toilet and in the toilet, using a metal key to control the three states of autodoor: normally auto opening and closing, emergency forced opening and closing and locking. Both internal and external touch panels have text display remind and voice prompts in various states.
General Characteristics

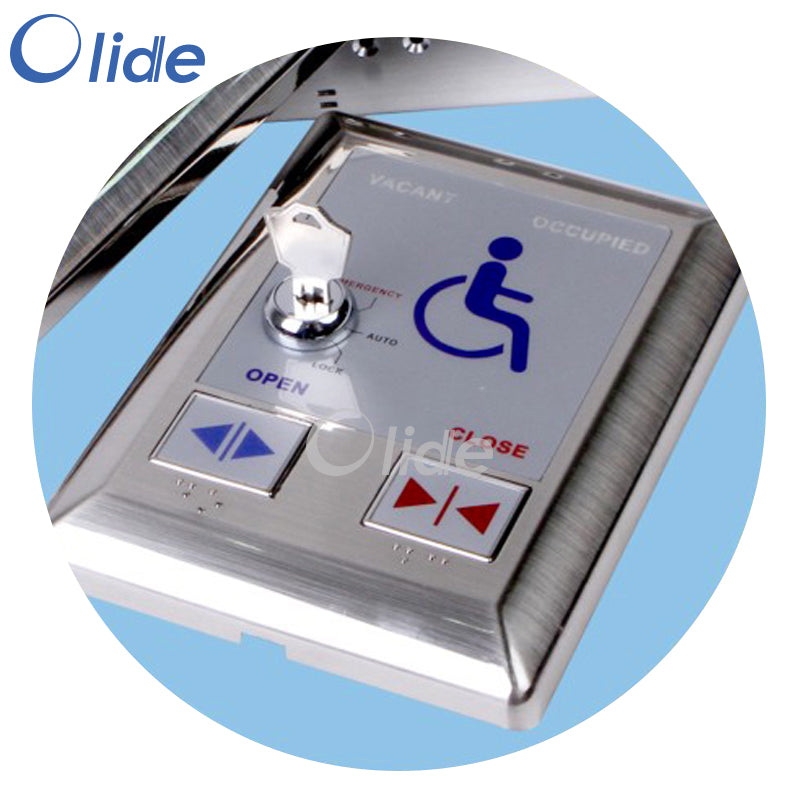

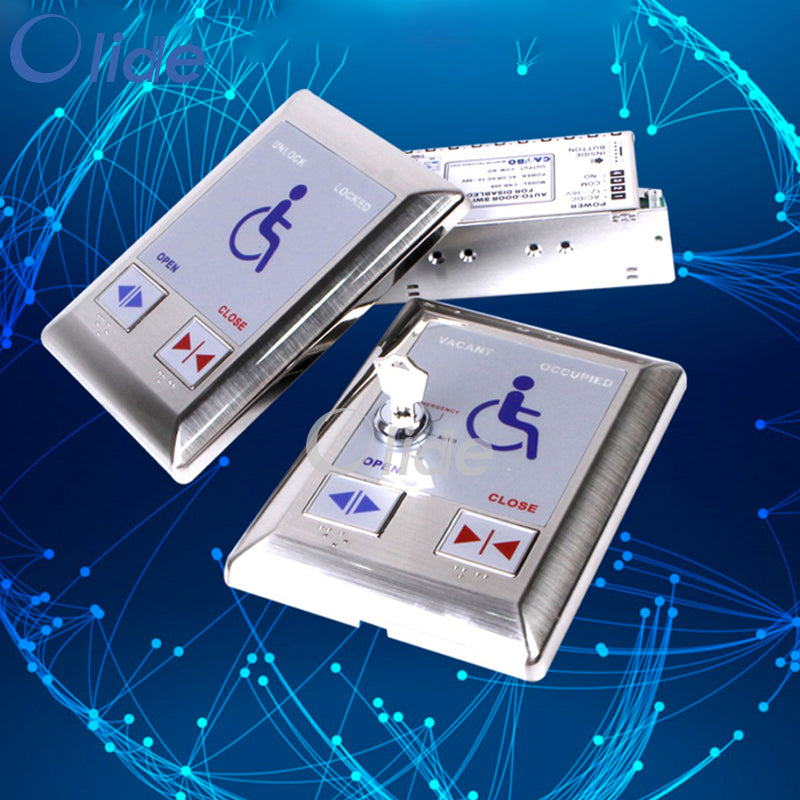

- It adopts the design of brushed stainless steel panel, both inside and outside panels have text and light status display.
- It is provided with a three-position pull key, through which you can choose normal access, emergency forced open and closing and locking.
- It is equipped with high-definition voice (options:English, Chinese, Korean).
- Standard Braille contacts are available below the switch buttons.
Technical Parameters
Input voltage: | AC/DC 12-36V | Door closing delay: | 5s,1 5s,15m manual |
Voice: |
English, Chinese, Korean (customizable) |
Panel size: | 160(L) X120 (W) X15(H)mm |
Output: | dry contact of relay | Main controller size: | 145 (L) X57 (W) X38(H)mm |
